Southwire Professional Tone & Probe Kit
$67.46
$131.54

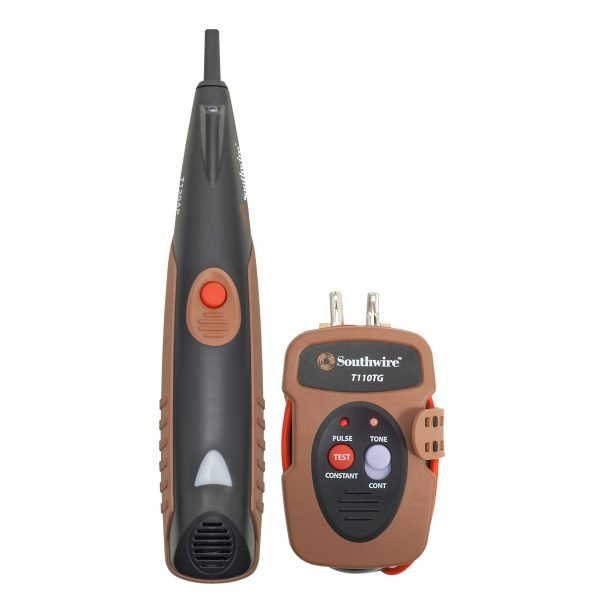

Quickly trace non-energized cables, even behind walls with the Southwire Professional Tone & Probe Kit. This powerful kit features a tone generator with positive cable detection and an amplifier probe with a replaceable tip, LED flashlight, and signal strength indicator. The kit includes a nylon pouch and 2 x 9V batteries for convenience. The ZC-T100P Professional Tone & Probe Kit quickly traces non-energized cabling. Powerful enough to trace cables behind walls but sensitive enough to identify individual conductors. Quickly trace non-energized cables - even behind walls Positive cable detection: tone changes when wires are shorted Toner features on-board test lead storage Probe features replaceable tip, LED flashlight, LED signal strength indicator, rearward facing speaker and stereo headphone jack Includes: - Professional Tone Generator - Amplifier Probe - Nylon Pouch - 2 x 9V batteries T110TG Tone Generator Specifications Continuous Tone Frequency: 1.06kHz nominal Over Voltage Protection: 60VDC in Toner/Polarity Mode Output Power in Tone Mode: 9.65dbm into 600 ohms Auto-Off: 30 minutes Open Circuit Voltage in Continuity Mode: 8.2VDC with fresh battery Battery: One 9V battery Operating Temperature: -4°F to 140°F (-20℃ to 60℃) Storage Temperature: -40°F to 158°F (-40°C to 70°C) T120AP Analog Probe Specifications Battery: One 9V battery Operating Temperature: -4°F to 140°F (-20℃ to 60℃) Storage Temperature: -40°F to 158°F (-40°C to 70°C)
