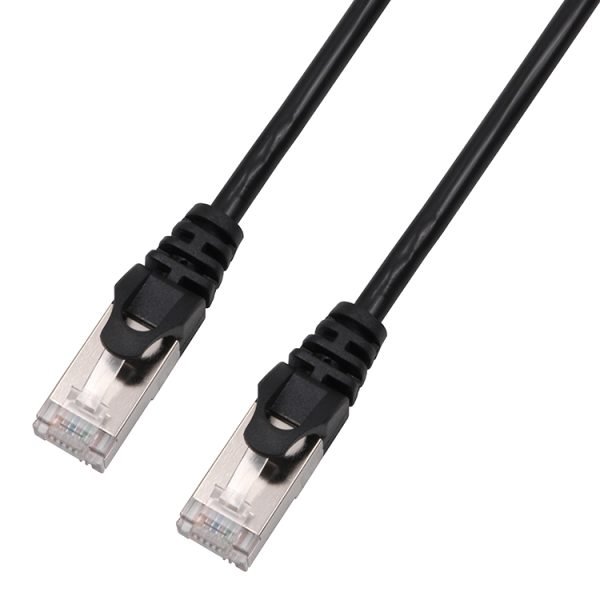

TechCraft 0.5' Ultra Thin Shielded CAT8 (40 GIG) FTP Network Cable w/ Metal Connectors - Black

Introducing the TechCraft 0.5' Ultra Thin Shielded CAT8 (40 GIG) FTP Network Cable in sleek black. With a max data rate of up to 40 Gbps, this high-speed Cat8 LAN cable features pure copper conductors and a PVC jacket. Designed with F/FTP overall foil and individually foil shielded pairs, this cable ensures reliable and fast transmission. Enjoy a bandwidth of 2000MHz and a durable 4.5mm outer diameter. RoHS approved and equipped with a 50u" gold-plated RJ45 connector, this cable is built to deliver exceptional performance. TechCraft CAT8 Shielded network cables transmit at up to 40 Gbit/s Ultra Thin High Speed Cat8 LAN Network RJ45 Cable 30 AWG Pure Copper Conductors PVC Jacket Max data rate: Up to 40Gbps F/FTP Overall Foil and Individually Foil Shielded Pairs Overview: - Bandwidth: 2000MHz - OD: 4.5mm - Conductor: 30AWG (7/0.10), Stranded Bare Copper - Approvals: RoHS - Connector: 50u" Gold Plated RJ45 Connector Physical Characteristics: - Cable Type: Cat8 F/FTP - Connector Type: RJ45 - Wiring Scheme: T568B - Temperature Rating: -20C - 75C - Voltage Rating: 30V Conductor (4 Twisted Pair): - Conductor Type: 30AWG (7/0.10), Stranded Bare Copper - Insulation: FOPE - Diameter: 0.75 -0.05mm Connector Type: - Connector Type: Shielded 8P8C RJ45 Male - Connector Material: PC - Contact Material: Copper Alloy with 50um Gold Plating - Connector Shield: Shielded Nickel Plating - Hood Material: PVC Molded Boot Overall Cable: - Jacket: PVC - Minimum Average Thickness: 0.65mm - Outer Diameter: 4.5 - 0.15mm Electrical Characteristics: - Conductor DC Resistance: 38.5Ohm/100m (Maximum) - Impedance: 100Ohm - Capacitance: 5600pf/100m - Propagation Delay: 545ns/100m (Maximum) - Delay Skew: 45ns/100m (Maximum) - Pass FLUKE DSX 8000 Channel Test (100% Test) Cable Markings: 25/40GBase-T CATEGORY 8 F/FTP PATCH CABLE 30AWG 4PAIRS ANSI/TIA-568.2-D
