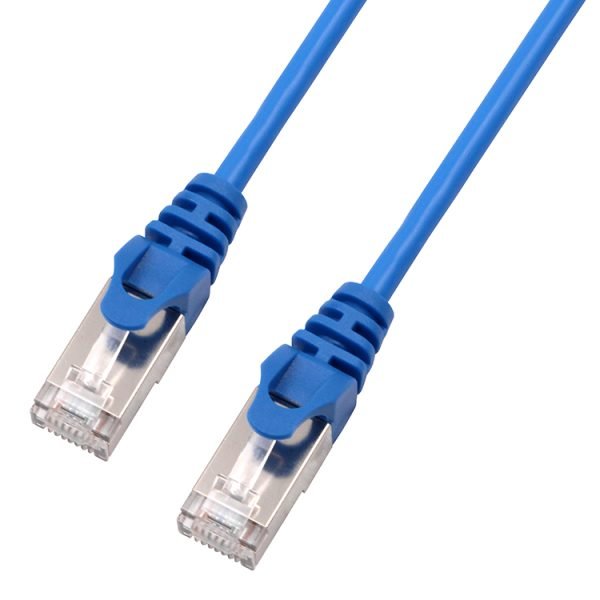

TechCraft 0.5' Ultra Thin Shielded CAT8 (40 GIG) FTP Network Cable w/ Metal Connectors - Blue

Introducing the TechCraft 0.5' Ultra Thin Shielded CAT8 (40 GIG) FTP Network Cable with Metal Connectors in a sleek blue color. This high-speed LAN network cable has a maximum data rate of up to 40Gbps, thanks to its 30 AWG pure copper conductors. With a PVC jacket and F/FTP foil and individually shielded pairs, this cable delivers exceptional performance. It features a 50u" gold plated RJ45 connector and is approved by RoHS. The cable is designed with physical characteristics like a bandwidth of 2000MHz and an OD of 4.5mm. Its 30AWG stranded bare copper conductor ensures optimal conductivity. The connector is shielded, made of PC material, and has copper alloy contacts with 50um gold plating. The overall cable has a PVC jacket with a minimum average thickness of 0.65mm and an outer diameter of 4.5mm. In terms of electrical characteristics, the cable has a conductor DC resistance of 38.5Ohm/100m (Maximum), impedance of 100Ohm, capacitance of 5600pf/100m, propagation delay of 545ns/100m (Maximum), and delay skew of 45ns/100m (Maximum). It also passes the FLUKE DSX 8000 Channel Test with a 100% result. The cable is marked as a 25/40GBase-T CATEGORY 8 F/FTP PATCH CABLE 30AWG 4PAIRS ANSI/TIA-568.2-D, ensuring its compatibility with the latest standards. TechCraft CAT8 Shielded network cables transmit at up to 40 Gbit/s Ultra Thin High Speed Cat8 LAN Network RJ45 Cable 30 AWG Pure Copper Conductors PVC Jacket Max data rate: Up to 40Gbps F/FTP Overall Foil and Individually Foil Shielded Pairs Overview: - Bandwidth: 2000MHz - OD: 4.5mm - Conductor: 30AWG (7/0.10), Stranded Bare Copper - Approvals: RoHS - Connector: 50u" Gold Plated RJ45 Connector Physical Characteristics: - Cable Type: Cat8 F/FTP - Connector Type: RJ45 - Wiring Scheme: T568B - Temperature Rating: -20C - 75C - Voltage Rating: 30V Conductor (4 Twisted Pair): - Conductor Type: 30AWG (7/0.10), Stranded Bare Copper - Insulation: FOPE - Diameter: 0.75 -0.05mm Connector Type: - Connector Type: Shielded 8P8C RJ45 Male - Connector Material: PC - Contact Material: Copper Alloy with 50um Gold Plating - Connector Shield: Shielded Nickel Plating - Hood Material: PVC Molded Boot Overall Cable: - Jacket: PVC - Minimum Average Thickness: 0.65mm - Outer Diameter: 4.5 - 0.15mm Electrical Characteristics: - Conductor DC Resistance: 38.5Ohm/100m (Maximum) - Impedance: 100Ohm - Capacitance: 5600pf/100m - Propagation Delay: 545ns/100m (Maximum) - Delay Skew: 45ns/100m (Maximum) - Pass FLUKE DSX 8000 Channel Test (100% Test) Cable Markings: 25/40GBase-T CATEGORY 8 F/FTP PATCH CABLE 30AWG 4PAIRS ANSI/TIA-568.2-D
