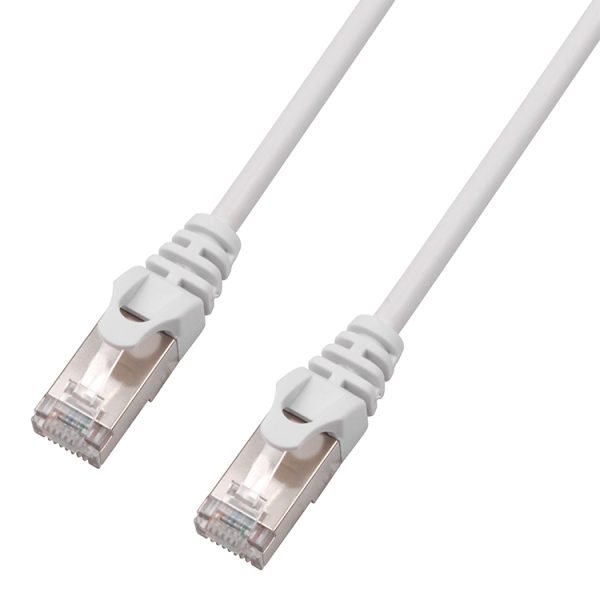

TechCraft 0.5' Ultra Thin Shielded CAT8 (40 GIG) FTP Network Cable w/ Metal Connectors - White

Introducing the TechCraft Ultra Thin Shielded CAT8 (40 GIG) FTP Network Cable in White. Experience lightning-fast transmission speeds of up to 40 Gbit/s with this high-speed Cat8 LAN Network RJ45 cable. Its ultra-thin design and pure copper conductors ensure maximum performance, while the PVC jacket provides durability. With foiled and individually shielded pairs, this cable delivers exceptional data integrity. Approved by RoHS, it features a 50u" gold-plated RJ45 connector for superior connectivity. The cable is also equipped with various physical characteristics including a bandwidth of 2000MHz, a 4.5mm diameter, and a temperature rating of -20C to 75C. The conductor is made of stranded bare copper and has an insulation diameter of 0.75mm. With a shielded 8P8C RJ45 male connector and shielded nickel plating, this cable guarantees reliable performance. The overall cable has a PVC jacket with a minimum average thickness of 0.65mm and an outer diameter of 4.5mm. Its electrical characteristics include a conductor DC resistance of 38.5Ohm/100m, an impedance of 100Ohm, a capacitance of 5600pf/100m, a propagation delay of 545ns/100m, and a delay skew of 45ns/100m. Pass FLUKE DSX 8000 Channel Test (100% Test). This cable is marked as a 25/40GBase-T CATEGORY 8 F/FTP PATCH CABLE 30AWG 4PAIRS ANSI/TIA-568.2-D. TechCraft CAT8 Shielded network cables transmit at up to 40 Gbit/s Ultra Thin High Speed Cat8 LAN Network RJ45 Cable 30 AWG Pure Copper Conductors PVC Jacket Max data rate: Up to 40Gbps F/FTP Overall Foil and Individually Foil Shielded Pairs Overview: - Bandwidth: 2000MHz - OD: 4.5mm - Conductor: 30AWG (7/0.10), Stranded Bare Copper - Approvals: RoHS - Connector: 50u" Gold Plated RJ45 Connector Physical Characteristics: - Cable Type: Cat8 F/FTP - Connector Type: RJ45 - Wiring Scheme: T568B - Temperature Rating: -20C - 75C - Voltage Rating: 30V Conductor (4 Twisted Pair): - Conductor Type: 30AWG (7/0.10), Stranded Bare Copper - Insulation: FOPE - Diameter: 0.75 -0.05mm Connector Type: - Connector Type: Shielded 8P8C RJ45 Male - Connector Material: PC - Contact Material: Copper Alloy with 50um Gold Plating - Connector Shield: Shielded Nickel Plating - Hood Material: PVC Molded Boot Overall Cable: - Jacket: PVC - Minimum Average Thickness: 0.65mm - Outer Diameter: 4.5 - 0.15mm Electrical Characteristics: - Conductor DC Resistance: 38.5Ohm/100m (Maximum) - Impedance: 100Ohm - Capacitance: 5600pf/100m - Propagation Delay: 545ns/100m (Maximum) - Delay Skew: 45ns/100m (Maximum) - Pass FLUKE DSX 8000 Channel Test (100% Test) Cable Markings: 25/40GBase-T CATEGORY 8 F/FTP PATCH CABLE 30AWG 4PAIRS ANSI/TIA-568.2-D
