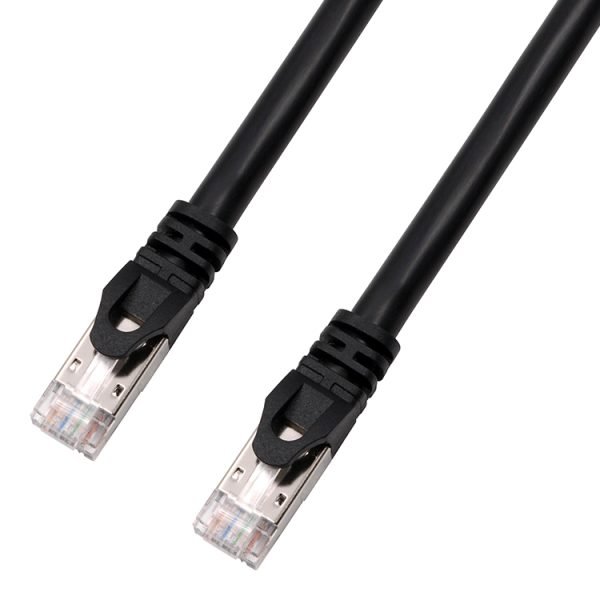

TechCraft 1' Shielded CAT8 (40 GIG) S/FTP Network Cable w/ Metal Connectors - Black

Experience lightning-fast data transmission with the TechCraft 1' Shielded CAT8 (40 GIG) S/FTP Network Cable. This high-speed LAN cable is equipped with 24 AWG pure copper conductors and metal connectors for optimal performance. With a maximum data rate of 40Gbps, it's perfect for demanding network applications. TechCraft CAT8 Shielded network cables transmit at up to 40 Gbit/s Heavy Duty High Speed Cat8 LAN Network RJ45 Cable 24 AWG Pure Copper Conductors PVC Jacket Max data rate: Up to 40Gbps Overview: - Bandwidth: 2000MHz - OD: 8.0mm - Conductor: 24AWG (7/0.20), Stranded Bare Copper - Approvals: RoHS - Connector: 50u" Gold Plated RJ45 Connector Physical Characteristics: - Cable Type: Cat8 S/FTP - Connector Type: RJ45 - Wiring Scheme: T568B - Temperature Rating: -20C - 75C - Voltage Rating: 30V - CAT8 S/FTP [1P/24AWG(7*0.20BC) AL)*4 BRAID (16*8/0.12AL-MG) Conductor (4 Twisted Pair): - Conductor Type: 24AWG (7/0.20), Stranded Bare Copper - Insulation: FOPE - Diameter: 1.4 -0.05mm Connector Type: - Connector Type: Shielded 8P8C RJ45 Male - Connector Material: PC - Contact Material: Copper Alloy with 50um Gold Plating - Connector Shield: Shielded Nickel Plating - Hood Material: PVC Molded Boot Overall Cable: - Jacket: PVC - Minimum Average Thickness: 0.6mm - Outer Diameter: 8.0 - 0.20mm Electrical Characteristics: - Conductor DC Resistance: 9.5Ohm/100m (Maximum) - Impedance: 100Ohm - Capacitance: 5600pf/100m - Propagation Delay: 545ns/100m (Maximum) - Delay Skew: 45ns/100m (Maximum) - Pass FLUKE Channel Test (100% Test) Cable Markings: 25/40GBase-T CATEGORY 8 S/FTP PATCH CABLE 24AWG 4PAIRS ANSI/TIA-568.2-D
