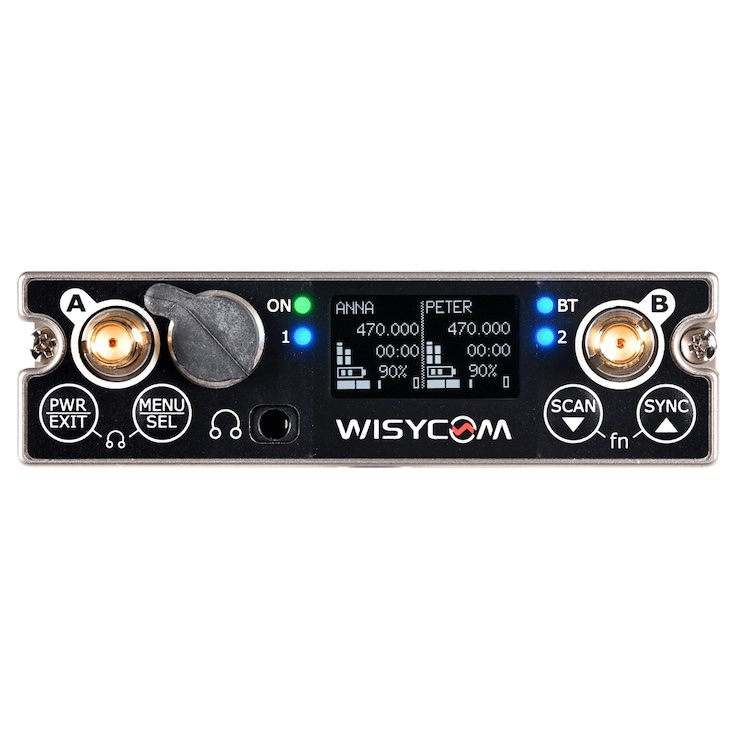

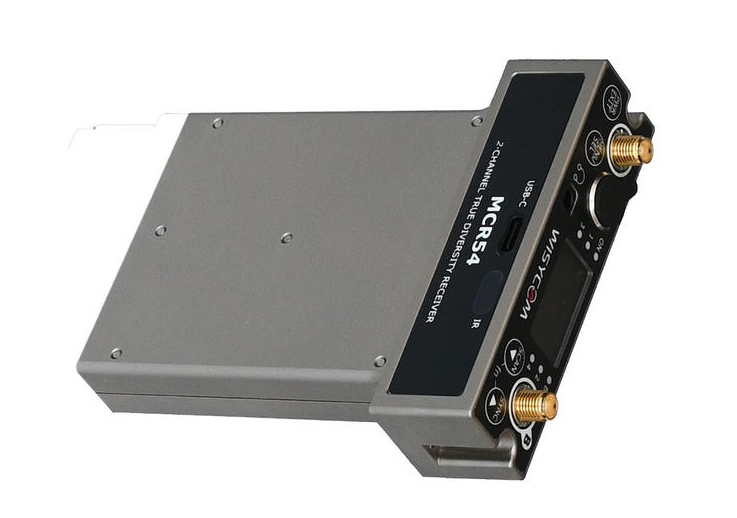

MCR54 DUAL is a camera dual true diversity wireless microphone receiver system in a modular stand alone or slot in configuration. Each receiver has a dedicated filter and then can be tuned independently. MAIN FEATURES: 2 channels True Diversity receiver with indipendent tuning (4 Receiver boards!) Exceptional compactness and high robustness DSP Analogue & Digital Audio Output (AES3) Up to 790 MHz bandwidth in 470/1260 MHz range Next Gen Multiband front-end filtering: – High Q electronically tunable filter in 470-800 MHz – 1st narrowband filter – 2nd narrowband filter Wideband and Narrowband DSP-FM operation (SW selectable): – Narrowband allows more 50% band efficiency – Narrowband allows about 3dB extra sensitivity and noise immunity Extreme low noise VCO with ultrafast spectrum scan for optimal quick & easy setup High contrast OLED display Automatic scan & transmitter programming through infrared and Bluetooth 5 DSP based for extreme flexibility and multi-companding operations Monitor & control through USB C or Bluetooth 5 (long range) on Wisycom Manager v3.2.1 (computer SW) Rear antenna connectors and micro audio and power adapter VERSION: B1: For Europe and UK market Tunable: 470 ÷ 800 Fixed Band 1:961÷1000 Fixed Band 2:1045÷1075 MHz (DME) B2: For Europe and USA market Tunable: 470 ÷ 800 Fixed Band 1:823÷832 Fixed Band 2: 940÷960 MHz (USA) The Wisycom BPA54 or SLK54-IK are not included
