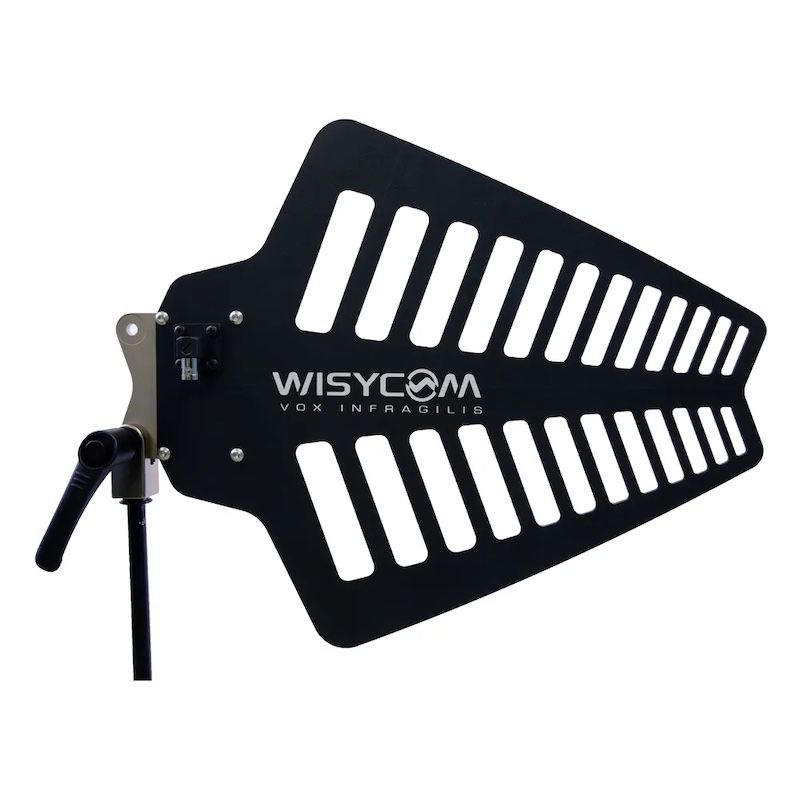

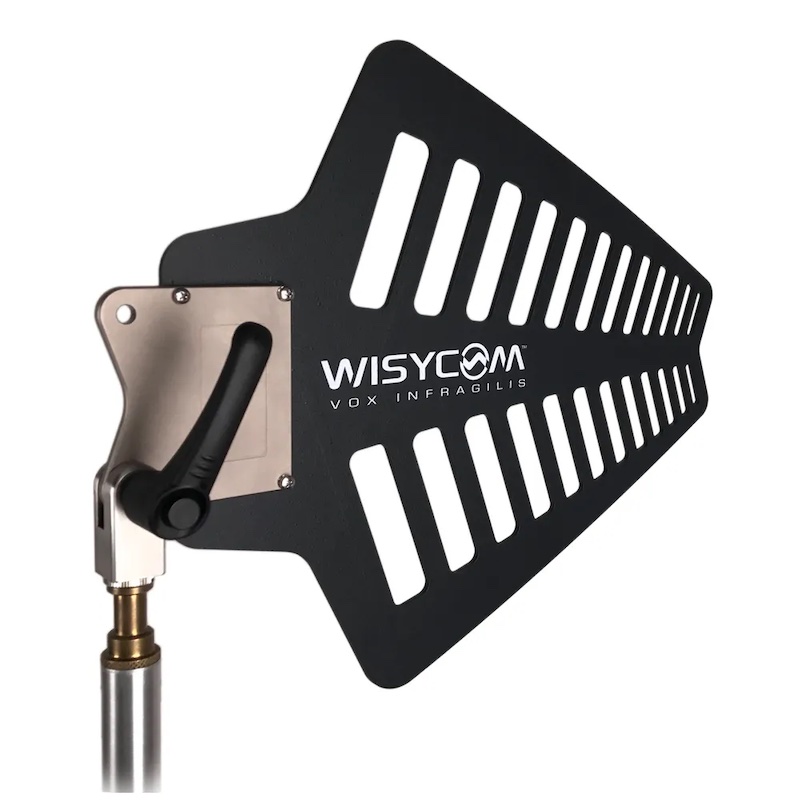

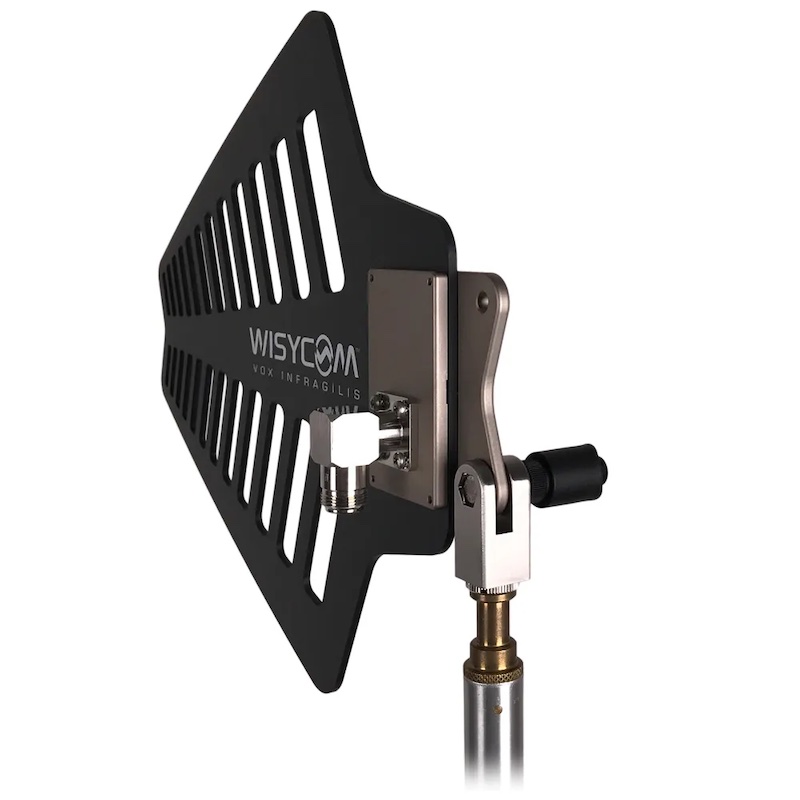

WISYCOM PASSIVE ANTENNA LBN2-LNN2

LBN2/LNN2 is a wideband UHF antenna LPDA (log periodic dipole Array). It enhances reception providing approx. 6 dBi gain with a typical beam-width of 140 degrees. LNN2 is provided with BNC connector (LBN2 version) or N connector (LNN2 version). FEATURES Skeletal Design for Minimal Wind Loading Bend elements for maximal directionality with minimum size (6 dBi gain) Future proof huge reception bandwidth 420-1300 GHz Robust metal support with fine slope tuning Full metal support and mounting base (1/4″ & 3/8″) Textured Weather-Resistant Coatin Waterproof with gasket sealing BNC or N connector available TECHNICAL DATA Frequency ranges: 420 ÷ 1300 MHz SWR: < 1:1.5; typ. = 1:1.4 Polarization: Vertical Radiation: Directional Connector: N type (BNC adapter available) Impedance: 50 Ω Material: epoxy fiberglass (copper – clad) Finishing: black matte Mounting: 5/8” with worth or 3/8” with adapter Dimensions: 276 x 336 x 61 mm (HxWxD) Weight: 500g (LBN2), 550g (LNN2)
