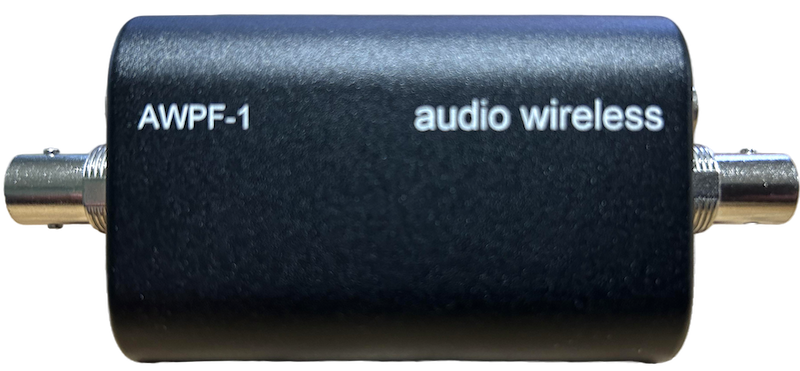

AUDIO WIRELESS – AWPF-1 Series RF Protection Filter

The AWPF-1 Series filter provides top-notch protection against unwanted RF (radio frequency) interference, ensuring your audio gear stays clear of signal disruptions. Perfect for sound recordists working in environments with high RF activity, like near wireless transmitters or cameras, this filter keeps your receiving systems running smoothly. Superior RF Protection: Blocks out unwanted signals from nearby devices like wireless IEM transmitters or camera transmitters, allowing your equipment to focus on what matters—clear, uninterrupted audio. High-Performance Design: With excellent rejection of unwanted signals and minimal signal loss, this filter enhances the performance of your gear without degrading sound quality. Custom-Tuned for Industry Needs: Available in a range of popular frequency bands (470–1260 MHz), or custom-tuned to your specifications for precise RF protection. Easy to Use: No power required—simply plug it in and you’re good to go. The filter is also designed to pass DC power to “Active Antennas” when needed. A convenient LED indicator shows the power status. Built for Durability: Crafted from CNC-machined aluminum, the AWPF-1 Series is designed to withstand the daily wear and tear of fieldwork. The black anodized finish and clear laser markings ensure long-lasting readability and reliability. Key Features: Precision RF Filtering – Passes only the frequencies you want, blocking interference before it reaches your receivers. Custom-Tuned Bands – Available in popular industry ranges or tailored to your exact needs. Ultra-Low Loss, High Protection – Minimal signal loss with excellent rejection of unwanted RF. Boosts System Performance – Helps protect receiver front-ends, improves dynamic range, and lowers noise floor. DC Pass-Through Ready – Powers active antennas (up to 370 mA) with a handy LED status indicator. Rugged & Compact – CNC-machined aluminium, black-anodized, laser-marked, and sized for any sound bag or cart. Plug-and-Play – Passive design requiring no power, with industry-standard BNC connectors.   Technical Specifications Band Pass Filter Section Frequency Range 470 to 1260MHz (in bands to customer order) Bandwidth 48MHz (other Bandwidths on request) Ripple in Band 1.0dB(max.) nominal <0.5dB Skirt Selectivity 25dB@ /-50MHz(min) LC Based Filter Technology 50dB@ /-50MHz(min) SAW Based Filter Technology RF Handling (Direct into) 3Watt (LC Based Filter Technology) 10mW (SAW Based Filter Technology) Insertion Loss 3.5dB max. (2.5dB nom.) System Noise Figure < 3.5dB(max.) equates to “Insertion Loss” of the specific filter design (2.5dB nom) Input Impedance 50 Ω Output Impedance 50 Ω Operating Temperature -20 to 55°C Bandwidth 48MHz (standard – other Bandwidth on request) – please see the Frequency Table System Noise Figure < 3.5dB(max.) equates to “Insertion Loss” of the specific filter design (2.5dB nom) RF Connectors RF Input 50 Ω standard BNC socket RF Output 50 Ω standard BNC socket Indicator DC through LED RED LED ON when DC present Powering DC Current Pass Through 370 mA (max) DC Volts Through 6V to 18V dc (Active Antenna powering volts) Maximum RF Input 3Watt for LC Based Filter Designs 10mW for SAW Based Filter Designs Outer Case Dimensions 103mm (inc. BNC connectors) x 46.50mm x 22.50mm
