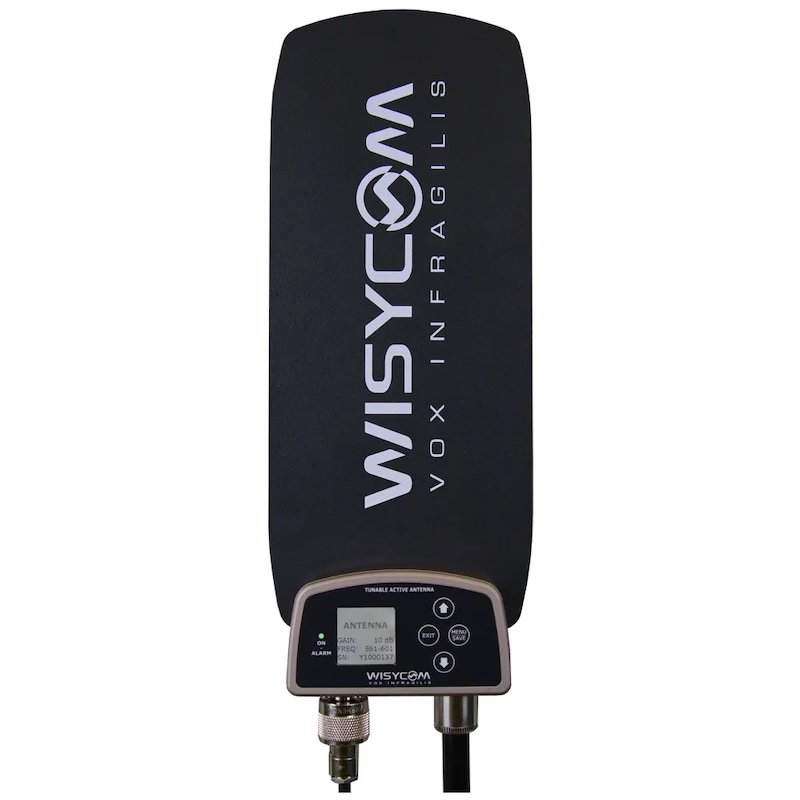

ADFA is an omnidirectional antenna with a unique design to achieve an ultrawideband of 430 -1160 MHz. ADFA integrate a unique bank of filters along with a low noise amplifier. Filters and gain can be easily setup locally thru a 4 key navigation buttons and a TFT display or remotely with a data connection on the same RF coaxial cable. Using the latest Wisycom filter technology, ADFA gives a full control of RF zones and allows to build flexible and remote controllable antenna systems. FEATURES Huge reception band: 430-1160 MHz Remote controllable thru coax cable (with MAT244/MAT288/SPL2208/SPL2216) RF gain from -12 to 27 dBu (1 dB step) Easy configuration thru a TFT display Tunable filter for interference control Antenna off for RF zone disabling Fixed band saw filter 3 High Pass & 3 Low Pass filters Waterproof with gasket sealing TECHNICAL DATA Frequency ranges: 430 ÷ 1160 MHz Polarization: Vertical Radiation: Omnidirectional Connector: N or BNC Impedance: 50 Ω Display: TFT – transflective (176 x 176 pixels, RGB) Power supply: 12 V, 100mA Operating voltage range: 9.5 ÷ 16 Vdc Material: epoxy fiberglass with skeletal design Finishing: black matte textured weather resistance coating Mounting: 5/8” with worth or 3/8” with adapter Dimensions: 305x 111 x 28 mm (HxWxD) Weight: 315 g (BNC), 365 g (N) Filter range • Tunable: 430 ÷ 730 MHz (UHF), 40MHz of BW • Fixed: 940 ÷ 960 MHz or 1240 ÷ 1260MHz • Selectable band pass filter: HP 410/470/510 MHz, LP 600/700/810 MHz (other see filter option) Booster Gain: -12 ÷ 27 dB typical (1 dB step selection) 0.8 dB attenuation (bypassed) Booster Gain flatness: ± 1 dB, in the whole working window
