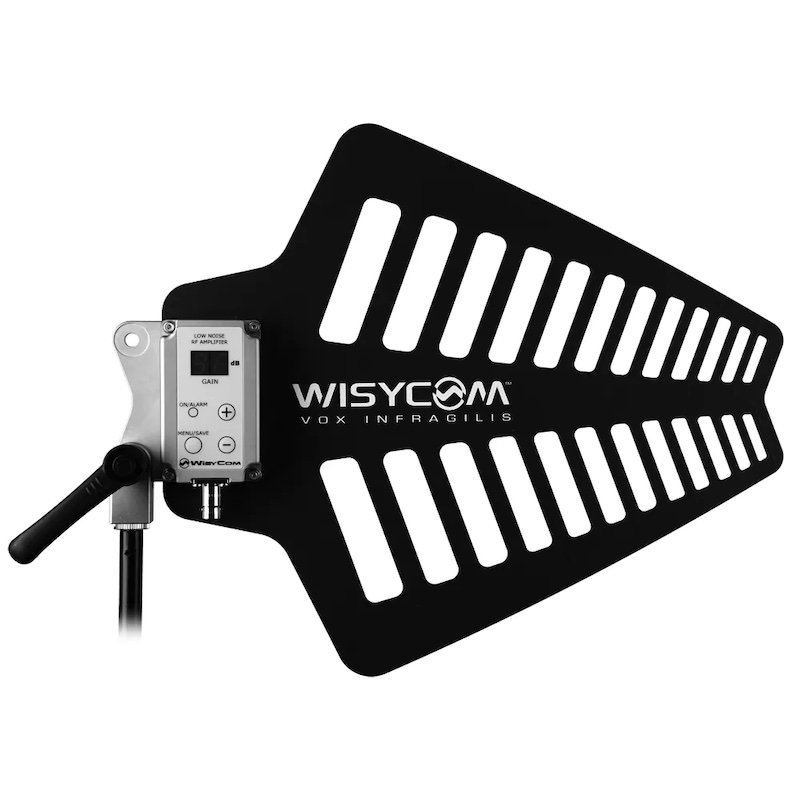

LBNA2/LNNA2 is a wideband UHF antenna LPDA (log periodic dipole Array). It enhances reception providing approx. 6dB gain with a typical beam-width of 90 degrees. FEATURES AGILE: working bandwidth of 470-870 MHz EASY & QUICK TO USE: LED display & function buttons RUGGEDIZED: sturdy metal body construction and epoxy protection on cable joints HIGH-PERFORMANCES: optimized 6dB gain with a typical beam-width of 90 degrees INTEGRATED BOOSTER: very high linear booster (OIP3 40 dBm) with 15 dB gain settable in one step dB step TECHNICAL DATA Frequency ranges: 470 ÷ 870 MHz (420 ÷ 1300 MHz bypassed) SWR: < 1:1.5; typ. = 1:1.4 Polarization: Vertical Radiation: Directional Connector: N type (BNC adapter available) Impedance: 50 Ω Booster Gain: 0 ÷ 15 dB (typical), selectable in step of 1 dB ( /- button) Booster Gain: flatness ± 1 dB, in the whole working window OIP3: 43 dBm (Output 3° order Intercept Point) typical Power: supply 12 V, 100mA Material: epoxy fiberglass (copper – clad) Finishing: black matte Mounting: 5/8” with worth or 3/8” with adapter Dimensions: 276 x 336 x 61 mm (HxWxD) Weight: 535 g (LBNA2), 585 g (LNNA2)
