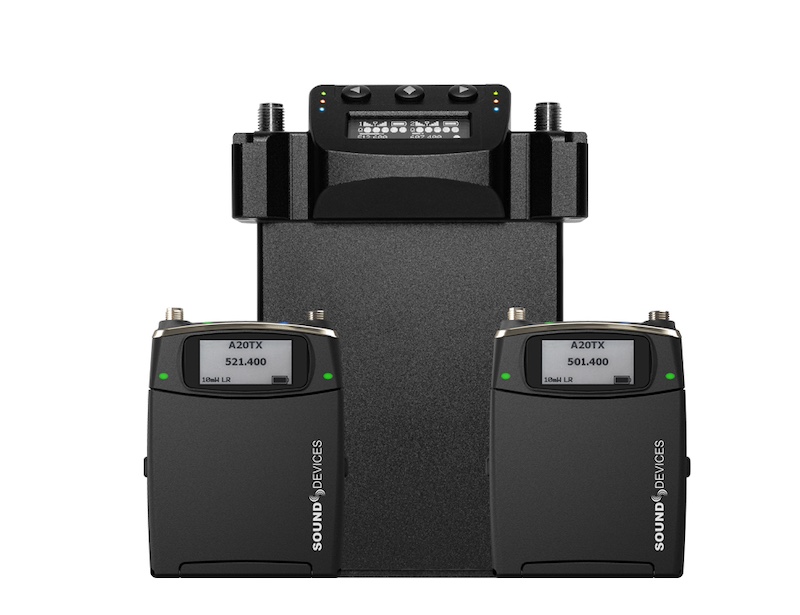

A20-TX FEATURES: worldwide VHF and UHF tuning range from 169 MHz-1525 MHz up to 12 hours battery runtime eco-friendly operation from rechargeable Lithium batteries or from standard AA batteries built-in battery charger via USB-C full remote control of the A20-TX via A20-Remote companion app and from A20-Nexus and A20-Nexus Go via long-range NexLink state-of-the-art 100% digital long-range modulation delivers the longest transmission distance of any system on the market RF Power output from 2 mW to 40 mW Lemo input supports 2-wire or 3-wire mono lav, balanced mic, switchable 12, 48V phantom, balanced line-level, AES3, AES42 (compatible with Schoeps SuperCMIT), and guitar (w/ optional Smart Guitar Cable) gainForward Architecture no gain control to worry about on the A20-TX full 10 Hz 20 kHz audio bandwidth 8-Series, fully balanced mic preamp built in (140 dB dynamic range) ultra-quiet lavalier mic preamp (130 dB dynamic range) built-in 32-bit float, 48 kHz recorder with removable micro-SD card ultra-stable timecode built in, auto jammed via wireless NexLink sunlight-readable e-Paper screen for control and display. Display persists when powered off USB-C for pairing with the A20-Nexus, file offload, charging, and timecode jamming A20-TX Switch: Optional user-programmable bayonet switch, magnetically sensed and physically removable A20-RX FEATURES: SpectraBand Technology: compatible with the A20-Mini from 470-1525 MHz and all tuning ranges of the A10-TX advanced Digital True Diversity topology uses two complete RF receivers for each of the two channels, with four RF receivers in total superSlot compatible with the SL-2 and 8-Series mixer-recorders state-of-the-art 100% digital long-range modulation delivers the longest transmission distance of any digital system on the market gainForward Architecture compatible with the A20-Mini. Set the Mini’s gain levels via trim control (with an 8-Series) or at the A20-RX (for other mixers) full 10 Hz 20 kHz audio bandwidth, 100% digital RF modulation and transmission excellent immunity from nearby IFB or camera hop transmitters without the need for external filters or extra cabling maximum connectivity: SuperSlot, XLR, and TA3 backplates, A-RXMON headphone amp, and A-15PIN two-channel AES Sony camera slot adapter analog line-level or AES digital audio output
