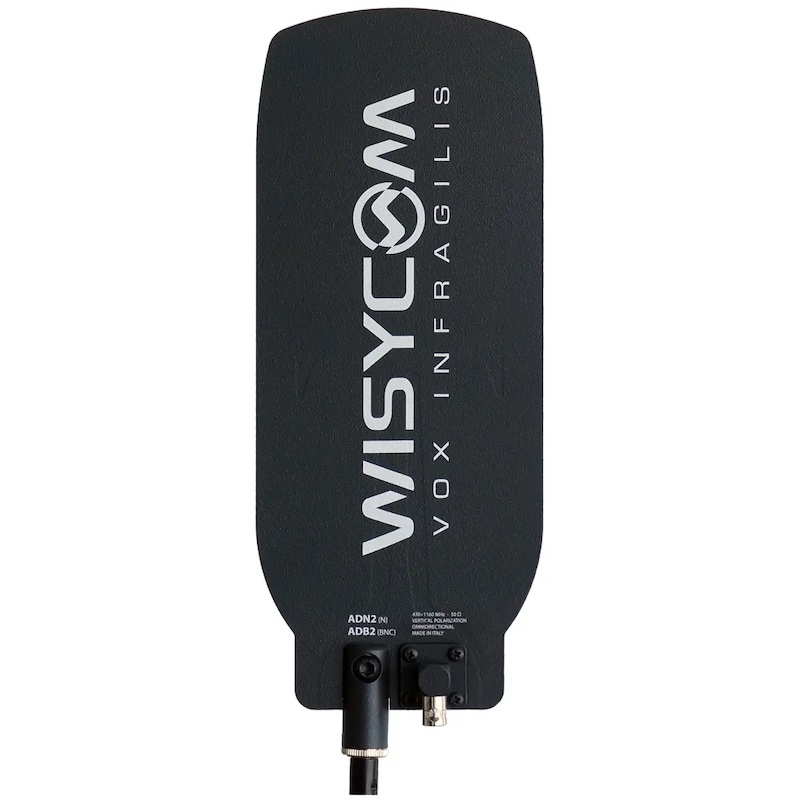

ADN/ADB is a wideband UHF omnidirectional antenna. It enhances reception providing approx. 3.2 dBi gain. FEATURES AGILE: working bandwidth of 430-1160 MHz RUGGEDIZED: sturdy metal body construction and epoxy protection on cable joints HIGH-PERFORMANCES: optimized 3.2dB gain TECHNICAL DATA Frequency ranges: 430-1160 MHz Polarization: Vertical Radiation: Omnidirectional Connector: N or BNC Impedance: 50 Ω Material: epoxy fiberglass (copper – clad) Finishing: black matte textured weather resistance coating Mounting: 5/4″ & 3/8“ thread (metal support and mounting base) Dimensions: 290 x 111 x 40 mm (N) or 290 x 111 x 28 (BNC) (H x W x D) Weight: 245 g (BNC), 295 g (N) SWR < 1:1.5 in the range 430 ÷ 960 MHz < 1:1.9 in the range 430 ÷ 1160 MHz
