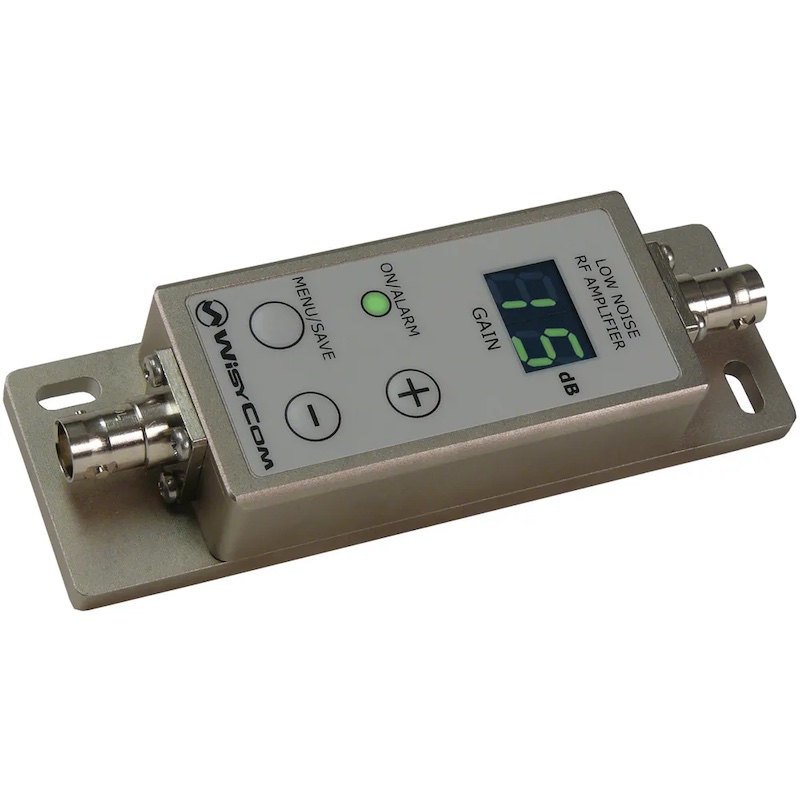

BAA is wideband antenna booster especially designed to allow to use long cables with broadband wireless receiver system working in 470 – 870 MHz (TV ch 21/70) thanks to a very high OIP3 of 40 dBm FEATURES Broadband operations 470-870 MHz Very high linearity (OIP3 > 40 dBm) Up to 16 dB gain settable in one dB step Powered thru cable Power feedthrough selectable for cascade operation of several BAAs TECHNICAL DATA Frequency ranges: 470 ÷ 870 MHz SWR: < 1:1.5; typ. = 1:1.4 Connector: BNC-female type Impedance: 50 Ω Booster Gain:: 0 ÷ 15 dB (typical), selectable in step of 1 dB ( /- button) Booster Gain: flatness ± 1 dB, in the whole working window OIP3: 43 dBm (Output 3° order Intercept Point) typical. Display: multi-colored (RGB) led Power supply: 12 V, 100mA 100mA ( if power input activated) [MAX: 12V/300mA] Material: ruggedized aluminum, with waterproof sealing (suitable for outdoor installations) Mounting: 2 holes for wall-installation (M4 screw type) Dimensions: 120 x 39 x 24 mm (HxWxD) Weight: 160g
