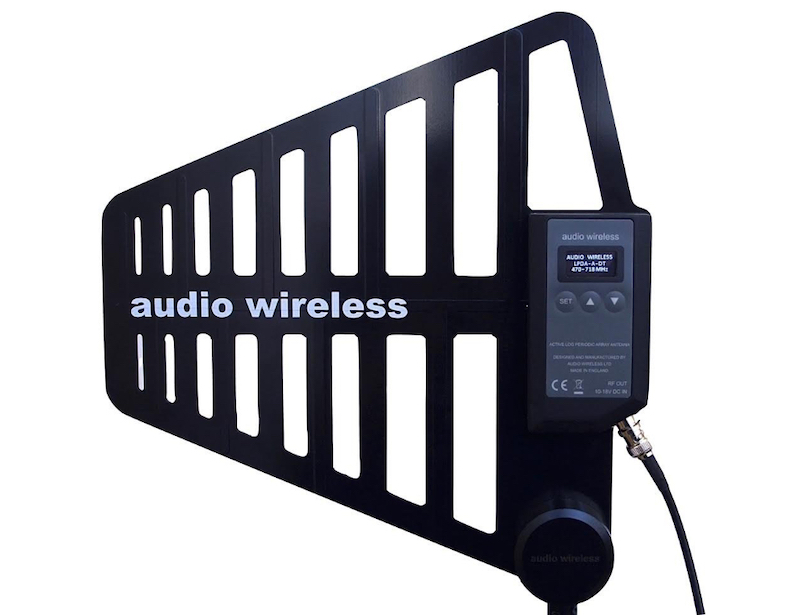

KEY FEATURES: Digitally tuned filtering in DT Mode Narrow Band RF Bandwidth in 24 and 48MHz Bandwidth Wide-Band filtering in WB Mode No dc Passive Mode with in-built Band-Pass filtering Very high dynamic range RF amplifier DT-Mode Tuning range 470-702/710MHz Tuning window 24MHz and 48MHz Bandwidth to order Tuning step 8MHz for 24MHz BW and 12MHz for 48MHz BW Independently user adjustable input Attenuator and Booster gain Intuitive OLED display menu Powered through coax cable Integrated mount adaptor CNC machined custom design 24MHz Bandwidth DIGITALLY TUNED FREQUENCY TABLE (470-702MHz): BAND No: FREQUENCY RANGE: BAND No: FREQUENCY RANGE: BAND No: FREQUENCY RANGE: 1 470-494 MHz 11 550-574 MHz 21 630-654 MHz 2 478-502 MHz 12 558-582 MHz 22 638-662 MHz 3 486-510 MHz 13 566-590 MHz 23 646-670 MHz 4 494-518 MHz 14 574-598 MHz 24 654-678 MHz 5 502-526 MHz 15 582-606 MHz 25 662-686 MHz 6 510-534 MHz 16 590-614 MHz 26 670-694 MHz 7 518-542MHz 17 598-622 MHz 27 678-702 MHz 8 526-550 MHz 18 606-630 MHz 9 534-558 MHz 19 614-638 MHz 10 542-566 MHz 20 622-646 MHz 48MHz Bandwidth DIGITALLY TUNED FREQUENCY TABLE (470-710MHz)*: BAND No: FREQUENCY RANGE: BAND No: FREQUENCY RANGE: BAND No: FREQUENCY RANGE: 1 470-518 MHz 7 542-590 MHz 13 614-662 MHz 2 482-530 MHz 8 554-602 MHz 14 626-674 MHz 3 494-542 MHz 9 566-614 MHz 15 638-686 MHz 4 506-554 MHz 10 578-626 MHz 16 650-698 MHz 5 518-566 MHz 11 590-638MHz 17 662-710 MHz 6 530-578 MHz 12 602-650 MHz LPDA-A-DT V2 (Log Periodic Dipole Array – Active Narrow-Band Digitally Tuned) antenna is designed to operate over the 470-710MHz tuning range and it consists of two components: LPDA-P passive antenna section and the Active Narrow-Band Tuneable Band-Pass Filter Antenna Booster. Tunable Radio Frequency (RF) filters are now essential designs in our modern PSME spectrum, these filters provide dynamic frequency selectivity, enabling efficient spectrum management and rejecting unwanted dirty RF signals and interference. These filters selectively allow certain frequency bands to pass while attenuating unwanted signals. Unlike the fixed Bandwidth filtered LPDA antennas, which are designed for a specific frequency band, tunable RF filtered LPDA Antennas offers a greater flexibly to be tuned and operated across multiple bands. LPDA-A-DT V2 is a tunable filter design and operates from 470 MHz to 710MHz covering our industry PSME band for world wide use. One of the most significant advantages of tunable RF filters is their ability to dynamically adjust their frequency range. By selectively attenuating unwanted signals, tunable filters improve signal integrity and reduce adjacent channel signal interference. LPDA-A-DT V2 may be used in active or passive mode to suit individual applications: Narrow-Band Digitally Tuned (DT) mode, tunable in the 470-702MHz with nominal 24MHz bandwidth tunable in 8MHz steps with user adjustable 20dB gain (* optional 48MHz Bandwidth tunable in 12MHz step over 470-710MHz). Fixed Bandwidth – WB Mode in the 470-710MHz range with user adjustable 14dB gain When there is no dc present the LPDA-A-DT V2 can be used as a High Gain Passive Antenna for receive or transmit applications with in-built filtering 470-702MHz, passive gain boasting 5dB. In the Digitally Tuned Mode (DT) the band-pass filter is Narrow-Band RF tuned to 24MHz frequency window to reject all outer frequencies providing an excellent protection to the receiving system, the digitally tuned band pass filter is user tunable in 8MHz steps via the OLED menu from 470 to 702MHz. (*) In the Wide Band Mode (WB), a very low loss Band-pass filter is employed with fixed bandwidth between 470-710MHz. The booster section; the input design uses a digitally adjustable RF-Attenuator before the RF Amplifier against RF overload and similarly the Booster Gain adjust is used after the RF amplifier to compensate long antenna extension cable losses, both are user adjustable. The booster section employs a very high dynamic range Low Noise RF amplifier offering a linear gain within the tuning range. The LPDA-A-DT V2’s unique design offers flexibility as well as additional front-end protection against interfering dirty RF, in DT-Mode the booster offers 20dB user adjustable gain to compensate long antenna extension cable losses hence increased distance between the transmitter and the receivers, LPDA-A-DT V2 finds its application in film making, documentaries, fixed installations as in studios, theatres. Compatible with any UHF wireless receiving systems (Digital or Analogue) providing a directional coverage pattern. The antennae are constructed using advanced multi-layer PCB designs technique with copper-clad epoxy fiberglass to withstand heavy duty use in harsh environments, providing long life and consistent performance under difficult operating conditions. The booster box is a custom-design machined aluminum, black anodized with water resistant O-ring mounting. Mounting is made easy with integrated thread that directly mounts on to a tripod or with the supplied adaptor it can be mount directly on to a microphone stand. Powering is through coaxial cable power source of 10-18Vdc. Product Specifications Digitally Tuned Mode Frequency Range (Variant Depended)* 470-702MHz/470-710MHz* Tuning Step (Variant Depended)* 8MHz/12MHz* Bandwidth (Variant Depended)* 24MHz/48MHz* Selectivity -38dB to -30dB@50MHz min. (across the whole tuning range) Gain 20 /- 2dB (user adjustable in 1.0dB steps) Wide-Band Mode Frequency Range 470 to 702MHz/470-710MHz* with in-built Band Pass Filter Gain 14 /- 2dB (user adjustable in 1.0dB steps) OIP3 > 41dBm Passive Mode (No DC Present) Frequency Range 470 to 702MHz/470-710MHz* with in-built Band Pass Filter Passive Gain 5dB with in-built band Pass Filter – 470-702MHz/470-710MHz* Connections RF output 50 Ω Standard BNC-F Mounting Options 3/8”-16 standard tripod mount 5/8”-27 adapter supplied Powering External Power 10-18Vdc, through coaxial cable (reverse power and short circuit protected) Current consumption@12Vdc 125mA /- 10mA Outer Case Dimensions 270x290x90mm Weight 490g
