Audio Wireless diversity antenna distribution multi band (DADM226-MKII-mb)

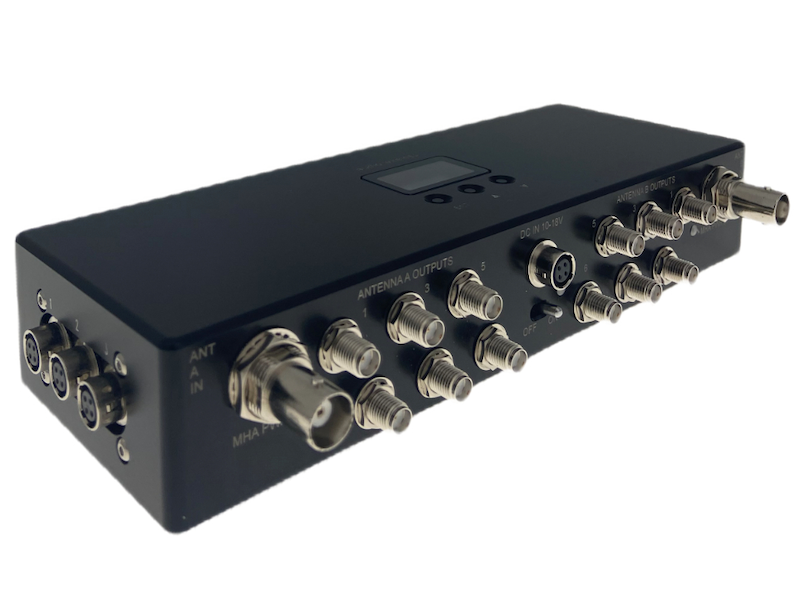

DADM226-MK2-MB is a digitally tuned semi-broadband design that offers Antenna Distribution for Diversity receiving systems, as well as dc power distribution solution for portable sound bags or sound cart/trolleys. Diversity Antenna Distribution Module DADM226-MK2-MB is a custom design, which offers the solution to antenna and power distribution requirements for portable sound bag applications. Designed for where the weight and size matter without sacrificing performance. The DADM226-MK2 is a 2 IN and 2 x 6 OUT active antenna distribution system with 20 pre-programmed band-pass filtering; user-adjustable system gain, the DADM226-MK2 eliminates multiple receiver antennas and provides a tidy sound bag solution with improved RF performance. There are two industry-standard BNC input connectors for antenna inputs that enable use of standard low loss RF extension cables, and there are 2 x 6 mini-RF SMA connectors feeding the diversity receivers. In applications when remote antenna power is needed, the DADM offers switchable MHA powering with RED LEDs indicating power ON/OFF status, the MHA powering can be turned ON/OFF through the OLED display menu. The DADM226-MK2 has a very high input signal handling capacity with a very low noise figure and offers an outstanding inter-modulation performance when compared to other low power devices available. The tuning bandwidth is custom designed to suit all popular radio microphone receivers available in the industry. The DADM is externally powered between 10-18Vdc, the dc input connector is an industry-standard 4-pin Hirose and there are 6 x Hirose dc output connectors available for powering any auxiliary equipment in any sound bag. Each dc output port can be individually turned ON/OFF through the OLED menu. A green LED indicates the power-on status of the system box and the OLED display continuously displays dc input voltage. Powering for the multiple receivers can be powered through the DC Hirose output sockets. The dc output ports can be turned ON/OFF from the OLED display menu. Audio Wireless wide tuning range systems are now the first choice among freelance sound engineers, hiring companies as well as major broadcasters for all wireless microphone applications.   KEY FEATURES: One pair of antennae feeds up to six diversity receivers 20 Pre-programmed band-pass filtering, user-adjustable gain Remote Active antenna powering 6 x Hirose dc outputs Industry-standard connectors Intuitive OLED display menu and LED indicators Single power source solution Master ON-OFF switch Continuous system volts monitoring Soft ON/OFF switch for each individual Remote Active Antenna powering Soft ON/OFF switch for each Hirose dc output CNC machined aluminum custom design, lightweight and rugged – fits neatly in any sound bag DADM226-MK2-MB: PRE-PROGRAMMEDMULTI-BAND SEMI-BROADBAND FREQUENCY TABLE: Line No: Freq Range: Manufacturer: 1 470-700MHz General 2 470-698MHz General 3 470-694MHz General 4 470-663MHz Wisycom 5 470-654MHz Sennheiser 6 470-608MHz Audio Limited 7 470-538MHz Lectrosonics 8 470-548MHz Audio Limited 9 470-558MHz Sennheiser 10 510-698MHz Wisycom 11 512-614MHz Zaxcom 12 518-608MHz Audio Limited 13 534-630MHz Audio Limited 14 537-614MHz Lectrosonics 15 550-638MHz Sennheiser 16 563-640MHz Lectrosonics 17 594-694MHz Audio Limited 18 596-698MHz Zaxcom 19 614-692MHz Lectrosonics 20 630-718MHz Sennheiser
