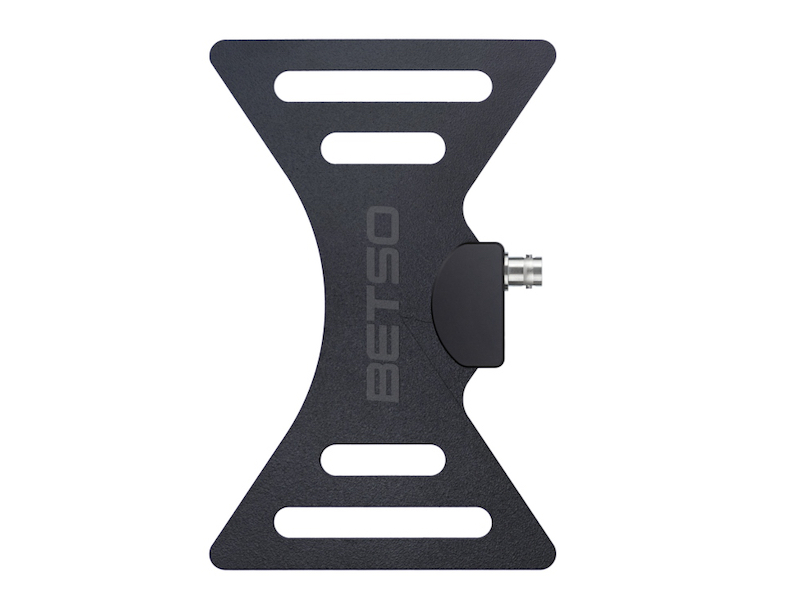

BETSO BOWTIE WIDEBAND OMNI ANTENNA The Betso Bowtie Wideband Omni Antenna is a compact wideband antenna which has been designed for use on a sound bag. It’s bandwidth 470-700 MHz, omnidirectional polar pattern (in a horizontal plane) and inbuilt 700 MHz low pass filter deliver flawless performance in a today’s disturbed RF environment. Rock solid and IP65 sealed mechanical construction guarantees careless functionality both in indoor and outdoor locations. Every BOWTIE is delivered as a complete package including also special bag antenna holder, short BNC-BNC and BNC-SMA(RA) cable. Wideband operation 470-700 MHz Standard whip antennas are tuned in to relatively narrow band and users need to change antenna according to actual working bandwidth of their wireless system to achieve good reception. The Bowtie antenna structure brings working bandwidth 470-700 MHz, so you can be always sure your antenna is receiving as many signal as possible and you can take care of other things when shooting. Inbuilt 700 MHz low pass filter Today’s RF spectrum is full of signals which can cause intermodulation and decrease range of your wireless system. These signals can be LTE – high speed mobile internet (now starts to occupy spectrum above 700 MHz), then 3G, GSM, bluetooth and WiFi to name a few. The Bowtie has an inbuilt 700 MHz low pass filter which can effectively remove these signals before first active parts in the receiver. Unique antenna holder (included) Very important aspect of bag antenna is it’s ability to be mounted on a sound bag. Not only to one special bag but to almost every bag on the market. Betso Antenna Holder fulfil all requirements of users – is compatible with all bags on the market (especially with the ones with a solid frame like ORCA or K-TEK), is fully adjustable, foldable and rock solid. Top build quality Lightened antenna structure is made of glass-reinforced epoxy laminate covered by scratch resistant structured paint. Precise sealing of all mechanical parts ensures great dust and water resistant performance (IP65 rating). Antenna type Passive Frequency range 470 MHz to 700 MHz Inbuilt filter low pass 700 MHz Antenna structure gain 1.8 dBi (@ 600 MHz) Antenna directivity as a dipole Antenna polarization Linear Antenna VSWR Excellent < 1.2 (@ 600 MHz) Mechanic construction CNC milled, anodized aluminium alloy and glass-reinforced epoxy laminate Mounting 1/4″ thread Dimensions (h x w x d) 170 x 111 x 14 mm (6.7″ x 4.4″ x 0.55″) Weight approx. 76 g (0.2 lb.) without holder and cable WHAT’S IN THE BOX 1x Bowtie 1x Clamp Holder (compatible with all bags) 1x BNC to BNC cable 1x BNC to SMA Right Angle cable
