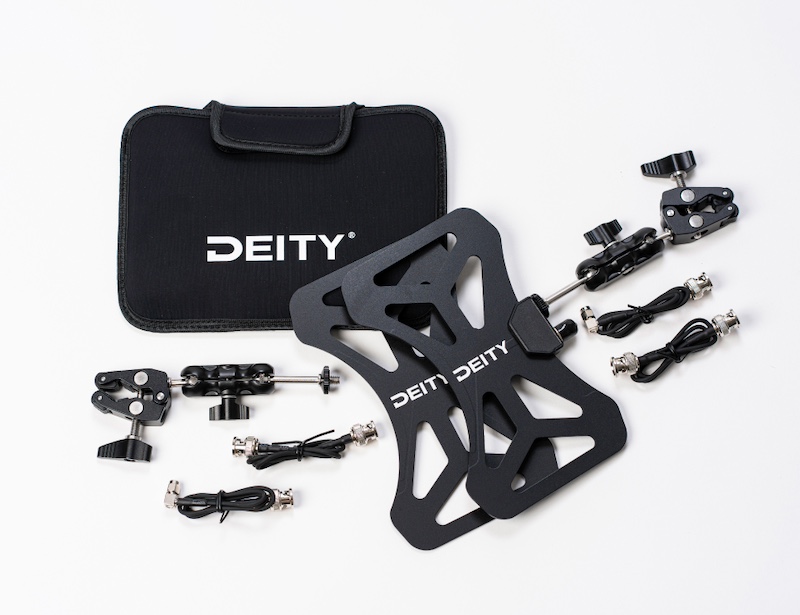

The Deity Butterfly bow-tie antenna is designed to have a relatively wide bandwidth. This means it can operate effectively over a range of frequencies, which can be advantageous in wireless microphone systems. Film sets often use different frequency bands for wireless microphones to avoid interference, and a broadband antenna like ours that can cover all these bands without needing frequent adjustments. Ultra Wideband Design 470MHz-1GHz Rugged Build Quality CNC Metal Mount 50Ohm BNC Connector Omnidirectional pickup pattern Compact Design The Deity Butterfly supports a ultra wideband of frequencies; 470MHz-1,000GHz. This means you have plenty of support for the Global OneBand within the THEOS ecosystem but also plenty of extra frequency bandwidth to support other brands wireless as well. Now when you go into an antenna splitter, you can mix-n-match different blocks/bands. Our BNC mount is IP65 weather sealed for situations where the butterfly antenna is being used for a permanent outdoor install. SPECIFICATIONS: Antenna Type: Passive Frequency Range: 470MHz~1GHz Gain: Ave 2.2dBi Impedence: 50 Ohm RF Connector: BNC Standing Wave Ratio: <1.5 (550~750MHz) Built-In Filter: None Pickup Pattern: Omni-Directional Mounting: 1/4″-20 Material: Composite Fiberglass Dimensions (H x W x D): 19*11.5*15 mm / 7.5*4.5*.6 inch Weight: 98 g (Antenna Only) / 3.4 oz Included In Kit: 2x BF1 Antenna 2x Articulating mounting arm 2x BNC to BNC Cables 2x BNC to Right Angle SMA Cables 1x Carrying Case
