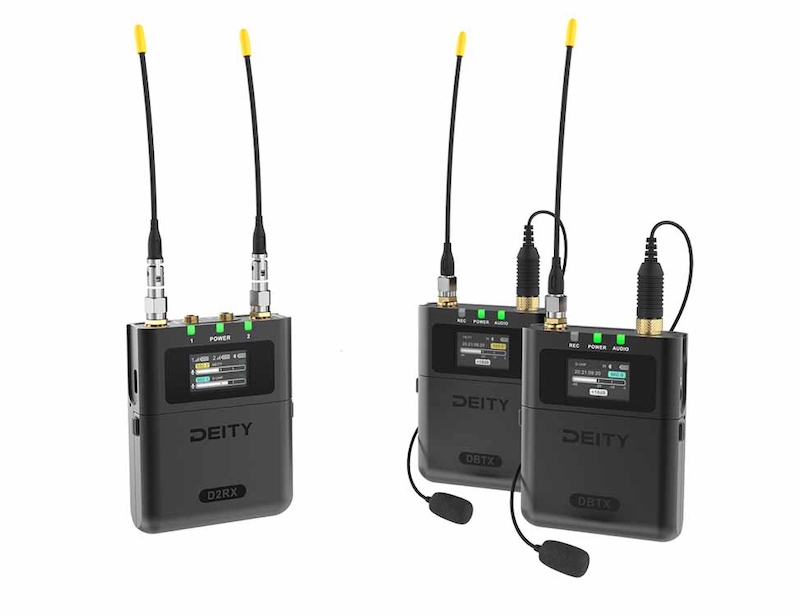

As a filmmaker, one of the most important aspects of your work is sound. There is nothing more frustrating than discovering that your audio is unusable due to interference, dropped signals or other issues. This is where the Deity Theos Digital Wireless Microphone System comes in. This state-of-the-art system is designed to make your audio recording process as seamless and stress-free as possible. FEATURES: uses a Wideband UHF spectrum rather than the crowded 2.4GHz spectrum. frequencies span between 550-960 MHz. the transmitter features a built-in recorder for backup files. The onboard recorder features both 24-bit and 32-bit float formats so you never have to worry about gain staging on your backup WAV files. Perfect for avoiding dropped signals and wireless interference. recordings are saved to a Micro SD card, up to 128Gb in size the transmitter can wirelessly sync its timecode to that of the Deity TC-1 timecode generator. Timecode ensures your backup WAV files will sync with your master file in post. you will be able to simultaneously transmit and record both the transmitter and receiver can be remotely controlled via the Sidus Audio app. Remote control features include frequency scanning and frequency assignment, frequency coordination between multiple receivers, gain staging, and remotely triggering the backup recorder. each device runs on 2 AA batteries for 7-10 hours of battery life. Battery life is also readable by the Sidus Audio app to remotely monitor the status of all your devices on set. full Color LCD screen showcasing the status of the device CNC milled aluminum chassis SMA antenna ports so you can swap them out to fine tune your antenna to your frequency block or replace them if they get damaged. Also makes transporting gear more compact in its case. IN THE BOX: 1x D2RX dual channel receiver 2x DBTX pocket transmitter 6x UHF-RA recevier antennas 2x 3 UHF-TA transmitter antennas 2x RX-Link receiver XLR output cables 1x mini-jack receiver output cable 1x cold-shoe mount 3x belt clips 2x W.Lav PRO black lavalier microphones 1x USB-C data cable 6x AA batteries carrying case SPECIFICATIONS: TRANSMITTER: RF modulation: proprietary digital RF modulation RF power: 10mW, 25mW, 50mW RF spectrum: 550 to 940 MHz RF frequency step: 100 KHz RF spacing:700 KHz antenna connector: 50 Ohm SMA dynamic range: 123dB distortion: <0.5% frequency response: 20 to 20 KHz low cut: 0FF/75Hz/100Hz/150Hz mic power: MIC-3V, MIC-5V, LINE mic connector: 3.5mm TRS input gain: 0 to 30dBV ADC bit-depth: 24 bit ADC sampling-rate: 48 kHz TIMECODE READER / GENERATOR: clock accuracy: 0.15 PPM (1 frame out in 72 hours) timecode type: LTC (SMPTE) timecode frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF INTERNAL RECORDING: media: microSD card (flash memory) file format: .wav BWF record format: 24/32bit float EIN: -132dBV (-130dBu) max (A-weighting, gain= 30dB, 150 Ohm source impedance) RECEIVER: RF frequency step: 100 KHz RF spacing: 700 KHz antenna connector: 50 Ohm SMA sensitivity: -95dBm latency: 6.3ms output: 2x analog output type: mono, stereo, headphone dynamic range: 103dB distortion: <0.5% DAC bit-depth: 24 bit
