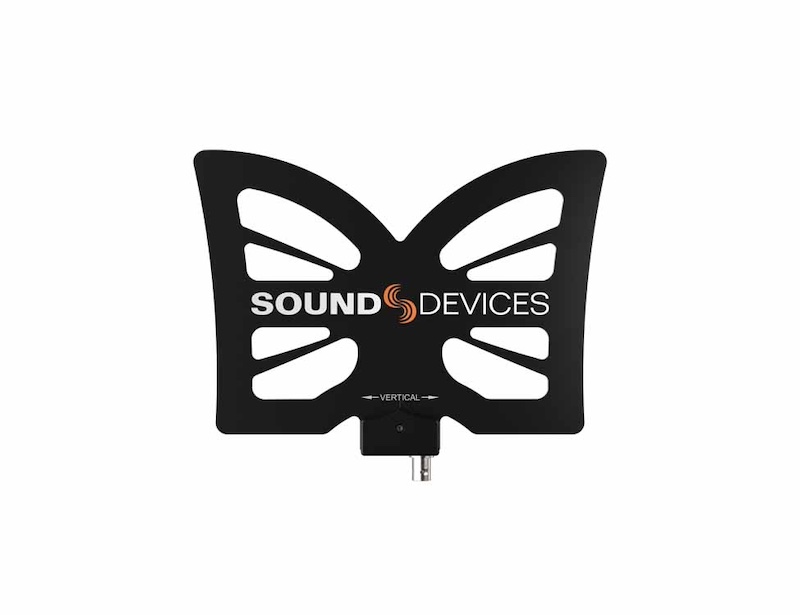

The A20-Monarch is a wideband omni-directional antenna that covers the A20-Nexus / Go operating frequency range from 470 to 1525 MHz (SpectraBand). The A20-Monarch kit comes with the following parts: 1x antenna 1x articulating arm/clamp with 1/4”-20 mount 1x 75cm BNC to BNC cable 1x 45cm BNC to SMA cable The A20-Monarch is not suitable for the A20-Nexus / Go VHF operating frequency range from 169 to 220 MHz. Instead the half-wave end-fed dipole VHF antenna with swivel-mount BNC should be used. The A-VHF-Dipole-BNC antenna is available as an optional accessory. SPECIFICATIONS: frequency range: 470 MHz to 1600 MHz gain: 2.2 dBi pattern: omni-directional return loss: better than 15 dB across entire 470 to 1600 MHz range mounting threads: ¼”-20 dimensions (H x W x D): 17.0 x 21.0 x 1.7 cm weight: 0.12 kg (unpackaged)
